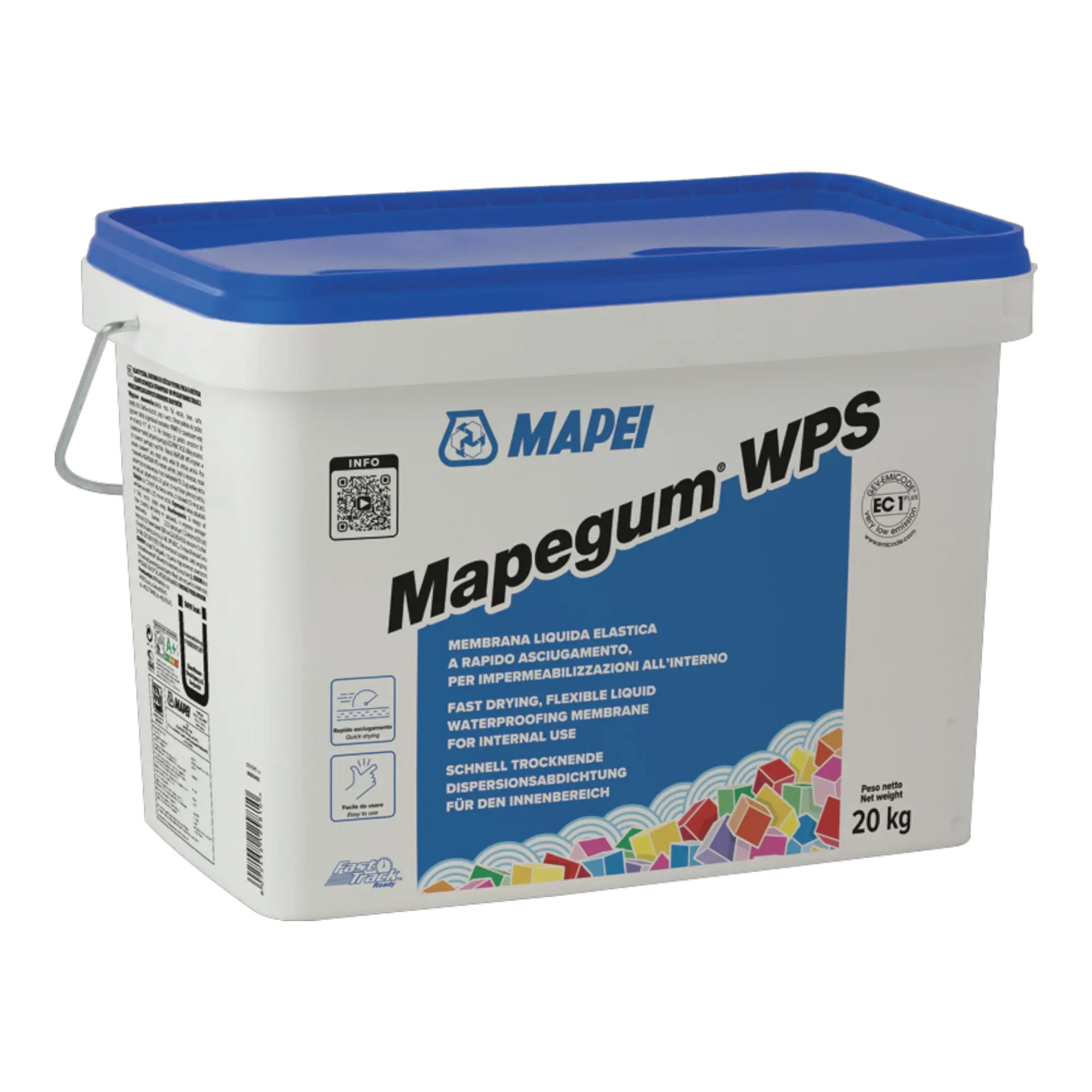

MAPEI Mapegum WPS Liquid Waterproofing for Bath & Shower

MAPEI Mapegum WPS – ready-to-use, fast-drying liquid waterproofing for use under tiles

Mapegum WPS is a single-component, fast-drying, dispersion-based liquid waterproofing membrane for interior use. It is used as a bonded waterproofing system under tiles and slabs in bathrooms, showers, and wet rooms and is suitable for moisture exposure classes up to W4 according to ÖNORM B 3407.

Scope of delivery: Container with 5 kg or 10 kg (variant selectable), ready to use.

Advantages of Mapegum WPS

• Ready to use – no mixing required
• Fast-drying – ready for tiling in 12–24 hours
• Class DM according to EN 14891
• Moisture exposure up to W4 according to ÖNORM B 3407
• Can be applied by brush, roller, trowel, or spray

Typical areas of application

• Waterproofing of showers and bathrooms under tiles
• Wall and floor surfaces in wet rooms
• Kitchens and laundry rooms
• For interior use only

Technical data

• Base: Synthetic resin dispersion, single-component
• Classification: DM according to EN 14891
• Minimum dry layer thickness: 0.5 mm
• Application: in 2 coats
• Waiting time before tiling: 12–24 hours
• Application temperature: +5 °C to +35 °C
• Storage: 24 months in the original unopened container, frost-free

Consumption

Consumption is at least 1.2 kg/m² for a 0.5 mm dry layer thickness. A 5 kg container is therefore sufficient for approx. 4 m², and a 10 kg container for approx. 8 m² of surface area to be waterproofed.

Application of Mapegum WPS

1. Prepare the substrate

The substrate must be load-bearing, clean, and free of dust. Prime absorbent substrates with MAPEI Primer G.

2. Seal corners and connections

Embed corners, connection joints, and movement joints into the fresh waterproofing using MAPEI Mapeband PE 120.

3. First coat

Apply the first coat of Mapegum WPS evenly using a brush, roller, or trowel.

4. Second coat

After drying, apply the second coat until a minimum dry layer thickness of 0.5 mm is achieved.

5. Tiling

After 12–24 hours, tiling can commence, e.g., using MAPEI Keraflex Extra S1.

Tip: Everything needed for a shower is also available in the MAPEI shower waterproofing kit.

Note: All information is based on the manufacturer's data from MAPEI. Please observe the current product and safety data sheets before application, which you can download at the bottom of this page.
