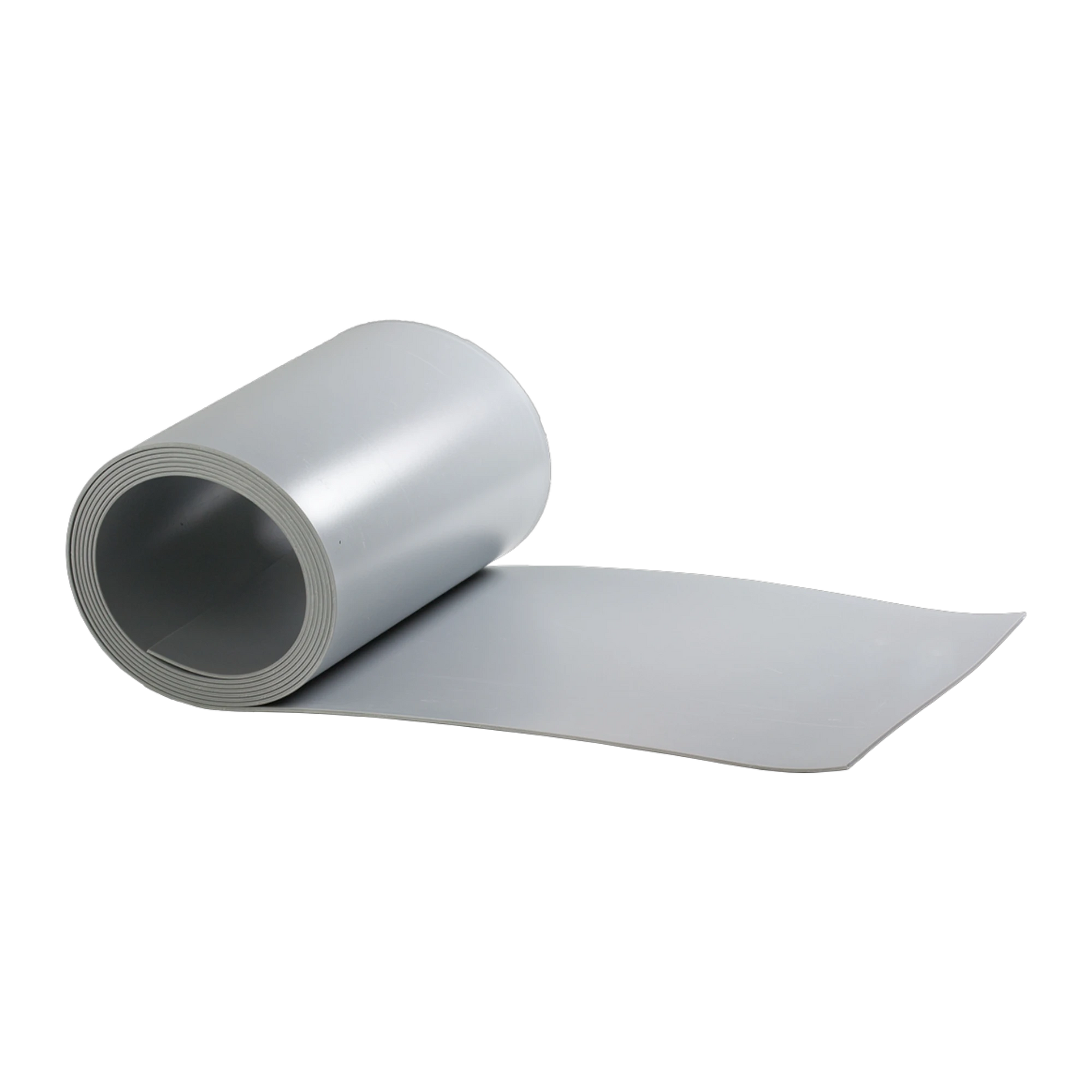

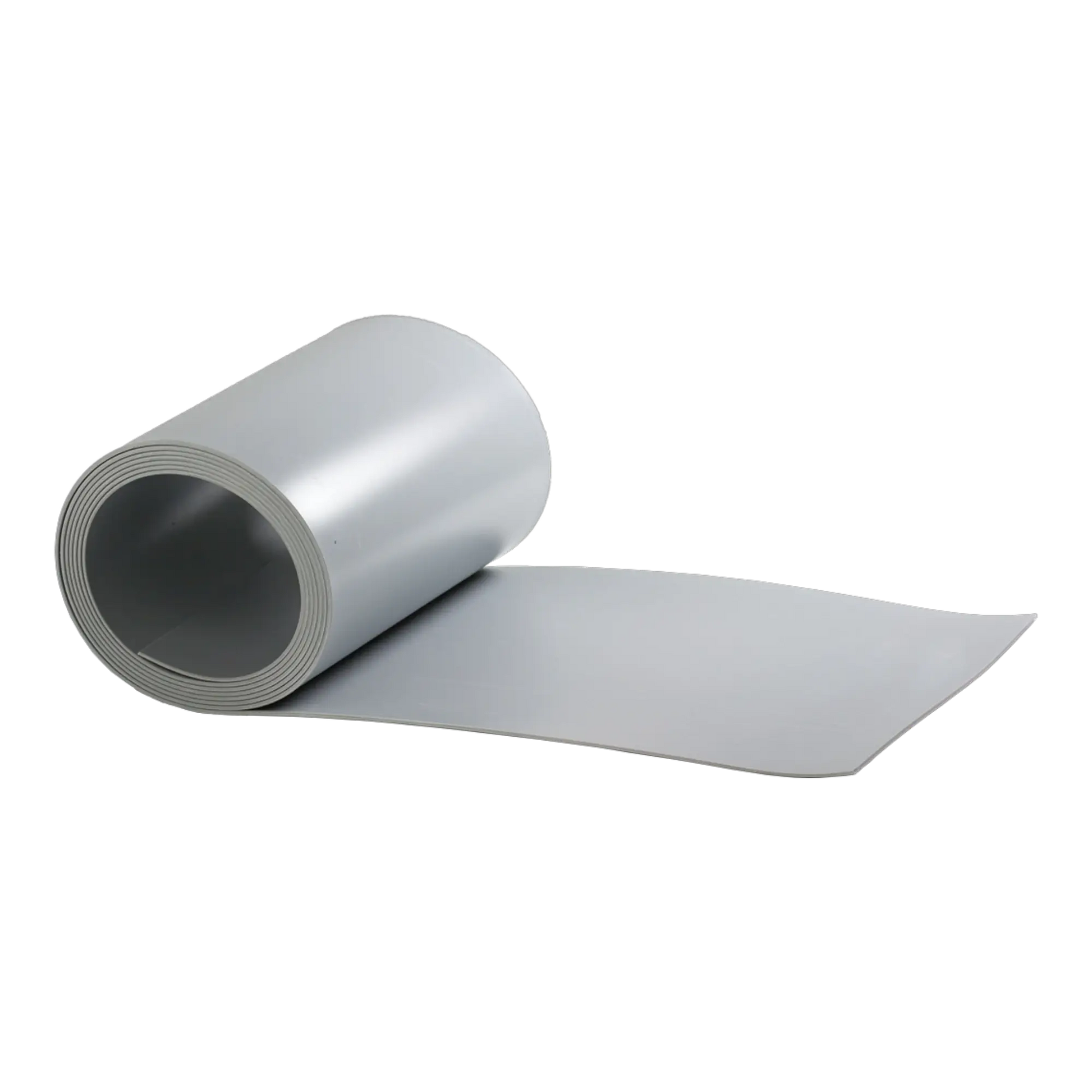

MAPEI Mapeband Flex Roll 200/1 – TPE Sealing Tape 200 mm × 1 mm, 20 m roll
Mapeband Flex Roll is a highly flexible thermoplastic elastomer (TPE) sealing tape for sealing expansion, construction, and connection joints as well as cracks. It is bonded using the epoxy adhesive MAPEI Adesilex PG4 or Adesilex PG1 and is waterproof up to 8 bar – even under pressurized water. The 200 mm wide version is suitable for wide joints and larger movements.
Scope of delivery: Roll with 20 linear meters, width 200 mm, thickness 1 mm. Also available as a 100 mm wide version.
Advantages of Mapeband Flex Roll
- Very high elongation (at least 400%)
- Waterproof up to 8 bar
- Workable from −30 °C to +60 °C
- Overlaps can be hot-air welded
- Securely bonded with epoxy adhesive
Typical areas of application
- Basement walls and floor slabs
- Underground garages and parking decks
- Water tanks, basins, and swimming pools
- Tunnels and civil engineering structures
- Sealing of cracks and joints with large movements
Technical data
- Material: thermoplastic elastomer (TPE)
- Width: 200 mm
- Thickness: 1 mm
- Elongation: ≥ 400%
- Watertightness: up to 8 bar
- Application temperature: −30 °C to +60 °C
- Roll length: 20 m
Application of Mapeband Flex Roll
1. Prepare the substrate
The bonding surfaces on both sides of the joint must be load-bearing, clean, dry, and free of dust, oil, and cement laitance.
2. First adhesive layer
Apply Adesilex PG4 or PG1 in a layer thickness of approx. 1–2 mm on both sides of the joint.
3. Install the tape
Place Mapeband Flex Roll into the fresh adhesive and press down firmly; leave a loop or a free expansion zone in the joint area. Weld overlaps with hot air.
4. Second adhesive layer
Cover the edges of the tape "wet-on-wet" with a second layer of adhesive and broadcast with quartz sand (Quarzo 0.5, according to the manufacturer) so that subsequent layers adhere well.
Note: All information is taken from the technical data sheet of the manufacturer MAPEI. Please consult the current product and safety data sheet before use, which you can download at the bottom of this page.
