MAPEI Mapeband Flex Roll 100/1 TPE Joint Tape 10cm 20lm

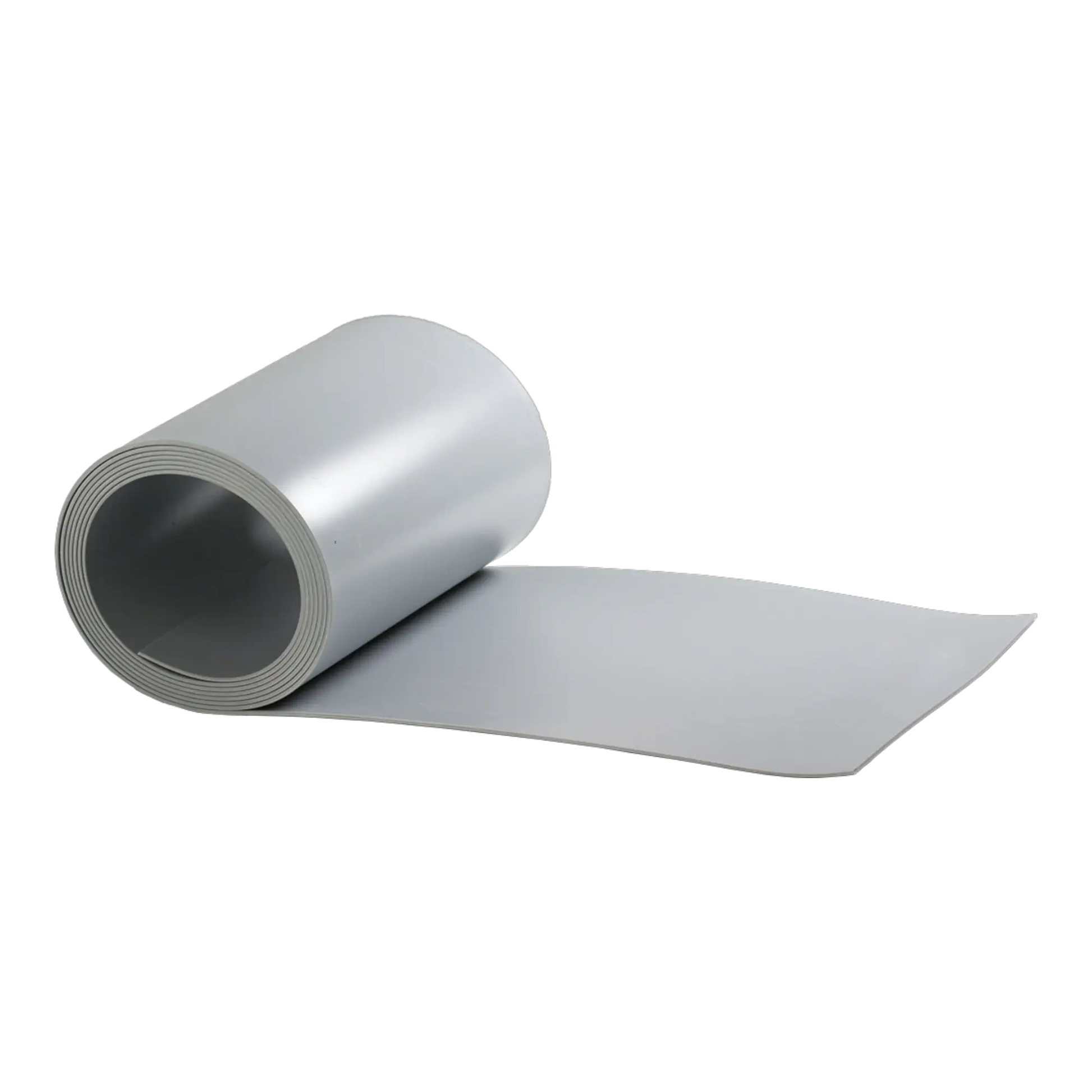

MAPEI Mapeband Flex Roll 100/1 – TPE Joint Tape 100 mm × 1 mm, 20 m roll

Mapeband Flex Roll is a highly flexible thermoplastic elastomer (TPE) sealing tape for sealing expansion, construction, and connection joints as well as cracks. It is bonded using the epoxy adhesive MAPEI Adesilex PG4 or Adesilex PG1 and is waterproof up to 8 bar – even under pressurized water.

Scope of delivery: Roll with 20 m, width 100 mm, thickness 1 mm. Also available as a 200 mm wide version.

Advantages of Mapeband Flex Roll

• Very high elongation (min. 400%)
• Waterproof up to 8 bar
• Processable from −30 °C to +60 °C
• Overlaps can be heat-welded
• Securely bonded with epoxy adhesive

Typical areas of application

• Basement walls and floor slabs
• Underground garages and parking decks
• Water tanks, basins, and swimming pools
• Tunnels and civil engineering structures
• Sealing of cracks and joints with large movements

Technical data

• Material: thermoplastic elastomer (TPE)
• Width: 100 mm
• Thickness: 1 mm
• Elongation: ≥ 400 %
• Water tightness: up to 8 bar
• Processing temperature: −30 °C to +60 °C
• Roll length: 20 m

Application of Mapeband Flex Roll

1. Prepare the substrate

The bonding surfaces on both sides of the joint must be load-bearing, clean, dry, and free of dust, oil, and cement laitance.

2. First adhesive layer

Apply Adesilex PG4 or PG1 in a layer thickness of approx. 1–2 mm on both sides of the joint.

3. Embed the tape

Place Mapeband Flex Roll into the fresh adhesive and press firmly; leave a loop or a free expansion zone in the joint area. Weld overlaps with hot air.

4. Second adhesive layer

Cover the edges of the tape fresh-on-fresh with a second layer of adhesive and broadcast with quartz sand (according to the manufacturer Quarzo 0.5) so that subsequent layers adhere well.

Note: All information is taken from the technical data sheet of the manufacturer MAPEI. Before application, please refer to the current product and safety data sheet, which you can download at the bottom of this page.
